हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!

|
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | UL |
| Model Number: | NEP 256TC |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 300-10000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 30DAYS |
| Supply Ability: | 5000SET/YEAR |
| Power Range: | 1-260hp | Frequency: | 60hz |
|---|---|---|---|
| IP rate: | IP55 | Standard: | UL |
| Mounting: | B3,B5,B35 | Frame: | 140-440 |
| voltage: | 230/460v,575v | Efficiency: | NEMA premium |
| poles: | 2,4,6 | Enclosure: | TEFC |
| Service Factor: | 1.15 | ||
| प्रमुखता देना: | NEP High Voltage DC Motor,NEP TEFC NEMA motor,conveyors TEFC NEMA motor IP55 |
||

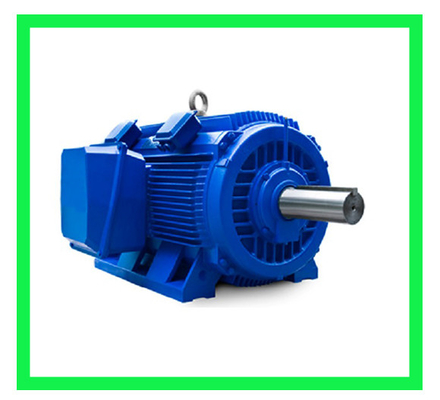

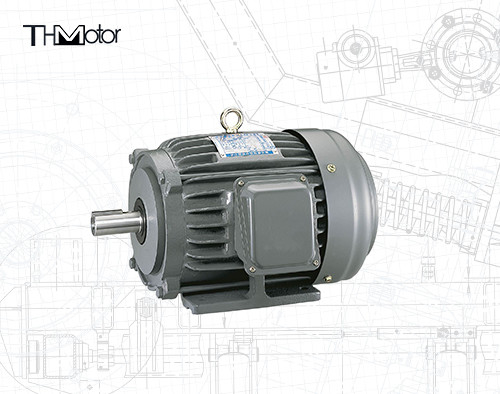

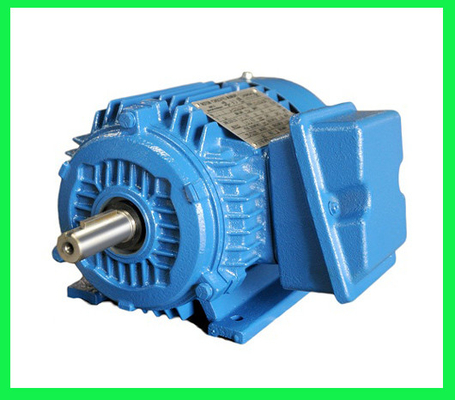

NEP All-Purpose Premium Efficient TEFC NEMA motor for fans,blowers,pumps,conveyors,crushers,compressors,mixers
Product overview
All-Purpose Premium Efficient motors are ideal for a wide variety of industrial applications including fans and blowers, pumps, conveyors, crushers, compressors, mixers and more. IP55 protection, a TEFC rigid cast iron construction, and dual rated 190/380V 50Hz with a 2-year warranty,
Features:
1. Inverter Duty Rated: 5:1CT & 10:1VT
2. Service Factor: 1.15
3. Design: “B”
4. Protection Degree: IP55
5. Enclosure: TEFC Rigid Cast Iron Frame
6. VPI applied for best electrical performance
7. Corrosion resistant epoxy coated
8. F1 / F2 Convertible
9. Oversized bearings on both ends (444T and up DE Roller Bearing)
10. 230/460V 60Hz, usable at 208V (444T and up 460V only)
11. Double rated for 190/380V 50Hz
12. Suitable for Y/delta starting and part winding starting
13. Double drilled feet
14. Class “F” insulation with rise below Class “B”
15. CSA-US certified, DOE approved, CE marked
Optional features:
a. A variety of electric motor modifications are available from our modification center including non-standard voltages.
b. Flanges, bearings.
c. Blowers.
d. Higher service factor.
e. Drip covers.
f. Space heaters and more.

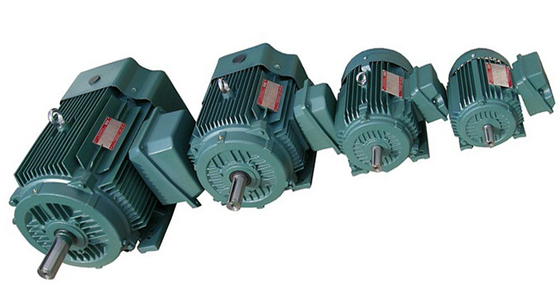

Each series of motors
Our aftersales service
Product packaging
Certifications
