हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!

|
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | YKK-500/1250KW |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Y Series High Voltage Electric Motor High Voltage AC Motor | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz, 60hz | Cooling method: | IC01、IC411、IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| प्रमुखता देना: | 10KV high voltage electric motor,high voltage electric motor 94.5%,Y Series 10KV squirrel cage motor |
||

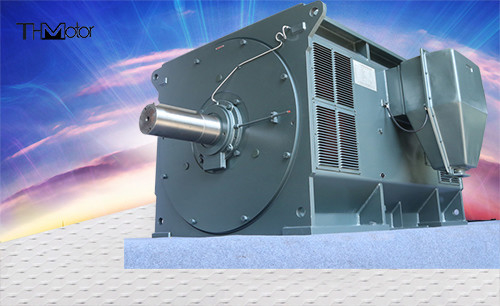

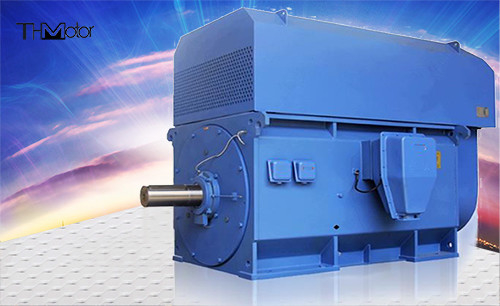

Y Series High Voltage Electric Motor High Voltage AC Motor
Product overview
Y series high-voltage motor adopts box-type structure, and the frame is welded by steel plate, which is light in weight and good in rigidity. Y series high-voltage motors are naturally ventilated and cooled, and a protective top cover is installed on the upper part of the base, which is convenient for disassembly and assembly, and facilitates the maintenance of the motor.
The stator winding is made of F-class heat-resistant insulating material, with reliable top binding, and the Y series high-voltage motor has good insulation performance and mechanical strength through vacuum pressure dipping.
The rotor of the Y series high-voltage motor adopts a squirrel-cage structure with reliable cast aluminum or copper conductors. There are two types of bearings: rolling bearings and sliding bearings, which depend on the speed and power of the motor.
Product specifications
| Motor frame | 500/630/710/800 | IP Rate | IP54/IP44/IP55 |
| Power range | 220kw - 2500KW,3500KW | IC(cooling) | IC611 |
| Voltage | 3KV, 6KV, 10KV | Poles | 2,4,6,8,10,12 |
| Frequency | 50HZ/60HZ | Insulation | F |
| Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
| Power Factor | 0.84-0.85 | AT(Ambient Temp) | -15-40℃ |
Each series of motors
Our aftersales service
Product packaging
Certifications
व्यक्ति से संपर्क करें: Chongqing sales team
दूरभाष: +8613251285880
