हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!

|
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | YKK-500/1250KW |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Squirrel Cage Asynchronous Motor High Voltage Ac Motor | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling method: | IC01、IC411、IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| प्रमुखता देना: | YKK squirrel cage asynchronous motor,asynchronous 10 kv electric motor,squirrel cage electric motor IC611 |
||

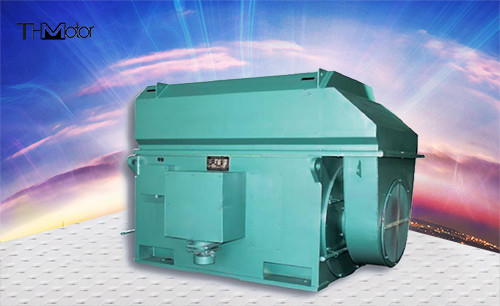

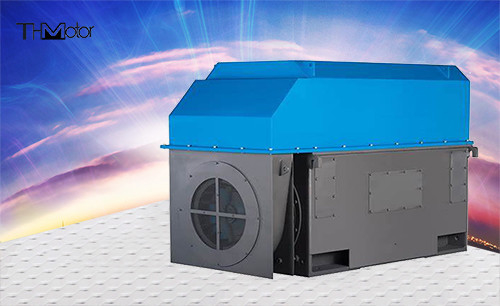

Squirrel Cage Asynchronous Motor High Voltage Ac Motor
Product overview
YKK high voltage motor products:
YKK high voltage motor is a squirrel-cage rotor asynchronous motor with a three-phase asynchronous motor as the cooler. The degree of protection is IP44 or IP54, and the cooling method is IC611.
The motor base and end cover are made of steel plate and adopt a box-type structure. Open the upper cover to observe the whole situation in the motor. All can be disassembled and installed, which is convenient for installation and maintenance. The protection grade is IP23, and the cooling method is IC01.
The motor has the advantages of high efficiency, energy saving, low noise, low vibration and reliable performance. , machinery industry, power plants and various industrial and mining enterprises as the prime mover.
The structure and installation type of the motor is IMB3, the rated value is continuous duty (S1), and the rated frequency is 50Hz.
Product specifications
| frame | 500/630/710/800 | IP Rate | IP54/IP44/IP55 |
| Power | 220kw - 2500KW,3500KW | IC(cooling) | IC611 |
| Voltage | 3KV, 6KV, 10KV | Poles | 2,4,6,8,10,12 |
| Frequency | 50HZ/60HZ | Insulation | F |
| rotory Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
| P.F. | 0.84-0.85 | AT(Ambient Temp) | -15-40℃ |
Each series of motors
