| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | Y800-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Yr560-4 High Torque Electric Motor Wound Rotor Induction Motor Slip Ring AC Motor | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling method: | IC01、IC411、IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| प्रमुखता देना: | YR560-4 Slip Ring AC Motor,Slip Ring AC Motor 3600rpm,YR560-4 High Torque Electric Motor |
||

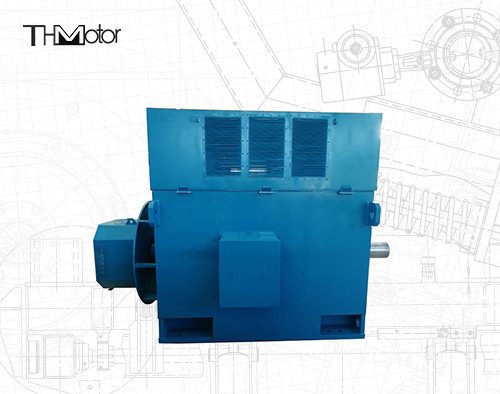

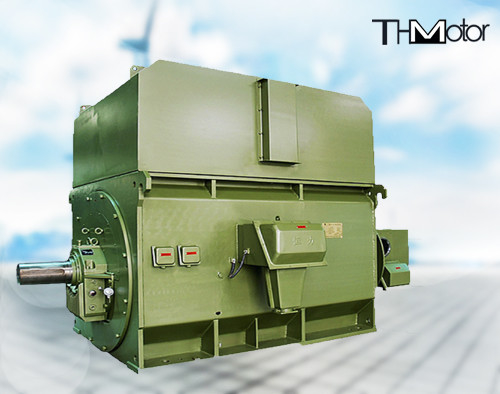

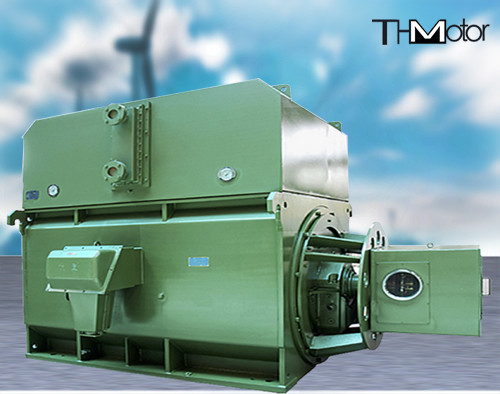

YR560-4 High Torque Electric Motor Wound Rotor Induction Motor
Product overview
YR series low-voltage-high-voltage motors are wound asynchronous high-efficiency energy-saving motors with natural ventilation cooling. YR series 6kv, 10kv high-voltage three-phase asynchronous motors are wound-type (slip ring) three-phase asynchronous motors. The protection grade of this motor is IP23 (see GB/T4942.1), and the cooling method is IC01 (GB/T1993). The motor has the advantages of high efficiency, energy saving, low noise, small vibration, reliable performance, convenient installation and maintenance, etc.
Scope of application of YR high voltage three-phase asynchronous motor
This series of motors can drive various general machinery such as compressors, ventilators, water pumps, cutting machine tools, transportation machinery and other machinery, so they are widely used in power plants, water plants, petrochemicals, metallurgy, mining and other industrial and mining enterprises.
Product specifications
| power | 100-10000kw |
|---|---|
| frame size | IEC 355-10000 |
| poles | 2-16 |
| rate voltage | 380-11000v |
| frequency | 50hz;60hz |
| IP Rate Cooling |
IP23 IC01 |
| material | iron |
| motor type | YR |
| IMB | B3,B5 |
| Standard | IEC, DNV, GB |
Each series of motors
Our aftersales service
Product packaging
Certifications
