YRKS500-6 400kw to 6000kw Industrial Electric Slip Ring Wound Rotor Induction Motors 11000v

उत्पाद विवरण:

Place of Origin:	China
ब्रांड नाम:	THMotor
प्रमाणन:	CE
Model Number:	Y800-4

भुगतान & नौवहन नियमों:

Minimum Order Quantity:	1set
मूल्य:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

संपर्क करें

विस्तृत उत्पाद विवरण

Product name:	Yrks500-6 Industrial Electric Motors Wound Rotor Induction Motor	Power Range:	400-6000kw
Voltage:	6000v-11000v	Speed range:	100rpm-3600rpm
Frequency:	50hz,60hz	Cooling method:	IC01、IC411、IC611
IP rate:	IP23, IP54,IP55	Poles:	2,4,6,8,12,16
प्रमुखता देना:	YRKS500-6 Industrial Electric Motors , Industrial Electric Motors 11000v , YRKS500-6 slip ring induction motor

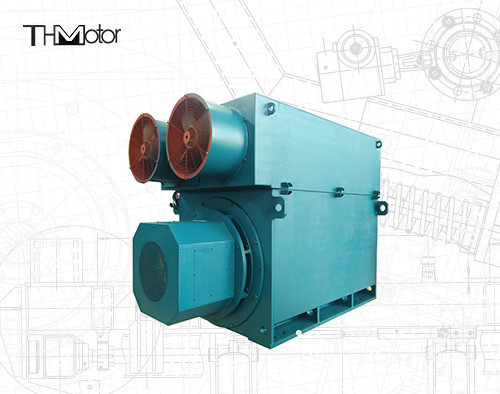

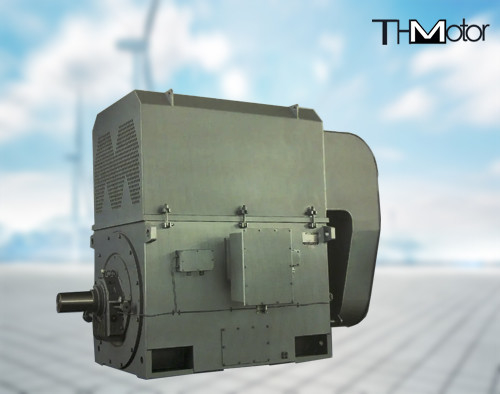

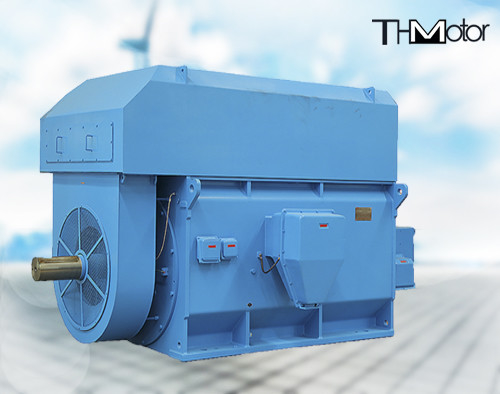

YRKS500-6 Industrial Electric Motors Wound Rotor Induction Motor

Product overview

YRKS series 6kv, 10kv high-voltage three-phase asynchronous motor is a closed winding (slip ring) three-phase asynchronous motor with air-water cooler. The protection grade of this motor is IP44 or IP54 (see GB/T4942.1), and the cooling method is IC81W (GB/T1993). The motor has the advantages of high load rotational inertia, high efficiency, energy saving, low noise, small vibration, reliable performance, convenient installation and maintenance, etc. This series of motors can be used to drive a variety of different machinery. Such as fans, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as prime movers in coal mines, machinery industry, power plants and various industrial and mining enterprises.

Product specifications

Description	parameters
power range:	200~2240kW
Rate voltage:	10kV,6kv
center high:	450~630,710,800
Poles:	4, 6p ,8,10,12p
IP rate:	YP series: IP23 YPKK series: IP54, IP55
Cooling:	YP series: IC06 YPKK series: IC666
Frequency range:	constant torque: 5~50Hz constant power: 50~67Hz
