हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!

|
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | TDMK400 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Power Range: | 400-15000kw | Voltage: | 3kv-11kv |
|---|---|---|---|
| Speed range: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | Poles: | 60, 48, 40, 36, 32, 30, 24, 20 |
| Frequency: | 50hz,60hz | Cooling method: | IC01,IC37,IC81W |
| IP rate: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | Standard: | IEC,GB |
| प्रमुखता देना: | 11kv pm synchronous motor,pm synchronous motor IC01 IC37 IC81W,11kv step up motors |
||

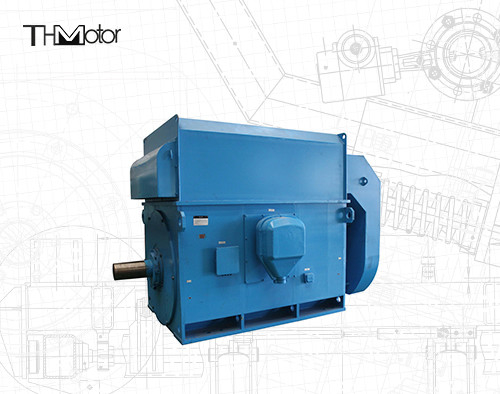

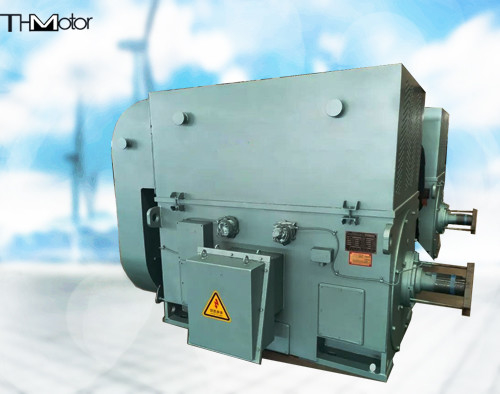

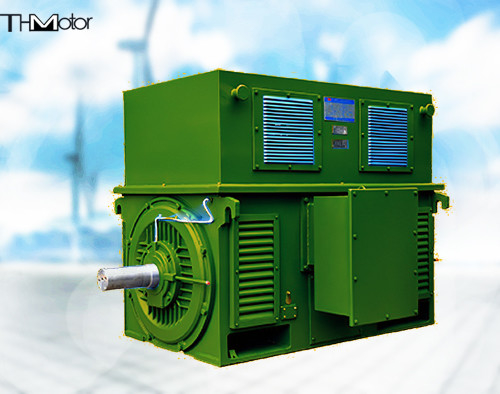

TYPKK Permanent Magnet Synchronous Motor
Product overview
The efficiency index of this series of products is based on the Grade 1 standard of GB30254-2013 (Energy Efficiency Limit Values and Energy Efficiency Grades of High Voltage Three Phase Cage Type Step-Up Motors).
This series of products are powered by inverter and have the characteristics of 0-50Hz constant torque output. When the user requires speed regulation higher than 50HZ, please specify when ordering.
Compared with asynchronous motors of the same specification, this series of products has higher efficiency, wider economical operation range, and significant energy-saving effect in the 25%-120% load range. The temperature rise of the motor is low, and the temperature rise of the motor is 30-50K under the rated negative cut.
This product is widely used in various mechanical transmission industries such as petrochemical, electric power, transportation, industrial and mining enterprises, fans, pumps, belt conveyors, etc. Depending on the load adjustment range, the electricity rate can be saved by about 30%.
This series of frequency conversion speed regulation ultra-efficient permanent magnet synchronous motors, rated voltage 10kV, can provide 6kV and other rated voltage products according to user needs
Power range: 185-5000KW
Frame number: H355-H1000
Series: 2, 4, 6, 8, 10, 12
Voltage: 6Kv, 10KV
Frequency: ~
Protection class: IP44, IP54
Insulation class: B, F
Can be customized according to actual working conditions
Product specifications
| POWER RANGE: | 400-15000kw | VOLTAGE: | 3kv-11kv |
|---|---|---|---|
| SPEED RANGE: | 100, 125, 150, 167, 187.5, 200, 250, 300r/min | POLES: | 60, 48, 40, 36, 32, 30, 24, 20 |
| FREQUENCY: | 50hz,60hz | COOLING METHOD: | IC01,IC37,IC81W |
| IP RATE: | IP00, IP20, IP21, IP23, IP44, IP54, IP55 | STANDARD: | IEC,GB |
Each series of motors
Our aftersales service
Product packaging
Certifications
