हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!

|
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | YR 1600kw Wound Rotor Induction Motor High Torque Induction Motor | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP55 |
| प्रमुखता देना: | asynchronous motor 3 phase IP23,YR 1600kw asynchronous motor 3 phase,YR 1600kw phase wound induction motor |
||

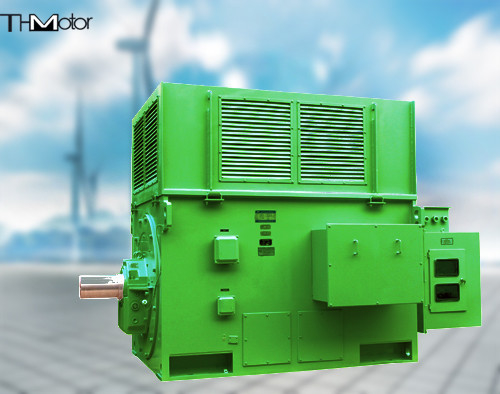

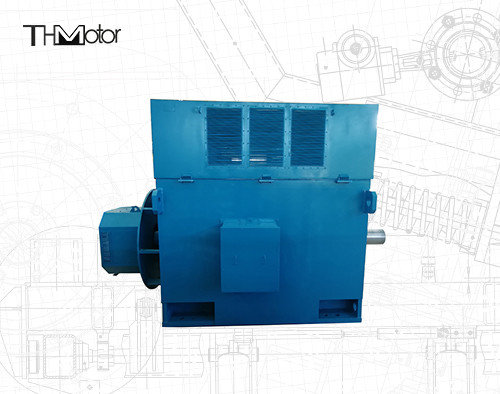

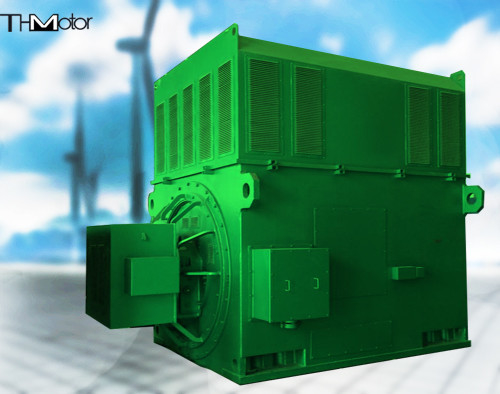

YR 1600kw Wound Rotor Induction Motor High Torque Induction Motor
Product overview
YR series 6KV, 10KV high voltage wound rotor three-phase asynchronous motor (center height: 355-630) (slip ring motor)
Rated power: 220kw - 2500KW
Rated voltage: 3KV, 6KV, 10KV
Rated speed: 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM
Protection class: IP23
Cooling method: IC01
Insulation class: F
Duty: S1
Packing type: wicker box/export fumigated wooden box
This series of motors has the advantages of high efficiency, energy saving, low noise, small vibration, safe and reliable operation, and convenient installation and maintenance. It can be used for various machines for general purposes, such as ball mills, fans, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other original motors. In addition, it can also be used to drive large rotational inertia fans, coal mills, rolling mills, winches, electric shovels and other machinery.
YR series 6KV, 10KV wound rotor three-phase asynchronous motors are produced according to the technical conditions of JB/T7594 (6KV) and JB/T10445-2004 (10KV), the protection level is IP23 (GB4942.1), and the cooling method is IC01, IC11, IC21 or IC31 (GB/T1993).
Product specifications
| frame | installation dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | K | AD | HD | L | |
| 710 | 1400 | 1800 | 530 | 200 | 350 | 45 | 185 | 710 | 56 | 1270 | 1510 | 4200 |
| 800 | 1600 | 2000 | 530 | 220 | 350 | 50 | 203 | 900 | 66 | 1420 | 1700 | 4300 |
| 900 | 1800 | 2240 | 600 | 250 | 410 | 56 | 230 | 900 | 66 | 1650 | 1900 | 4500 |
| 1000 | 2000 | 2500 | 600 | 280 | 470 | 63 | 260 | 1000 | 66 | 1800 | 2100 | 4600 |
Each series of motors
Our aftersales service
Product packaging
Certifications
