| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | 2200kw Wound Rotor Induction Motor High Torque Induction Motor | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP55 |
| प्रमुखता देना: | CE wound rotor type induction motor,High Torque Electric Motor IC37 IC81W,wound rotor type induction motor IC81W |
||

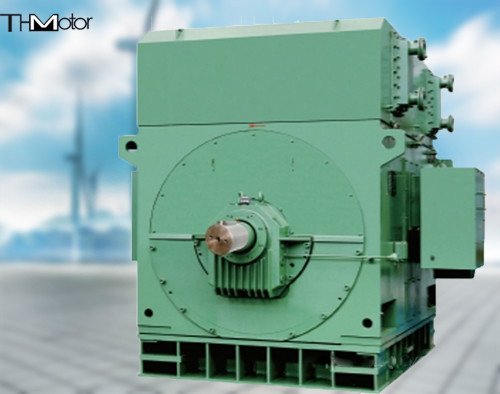

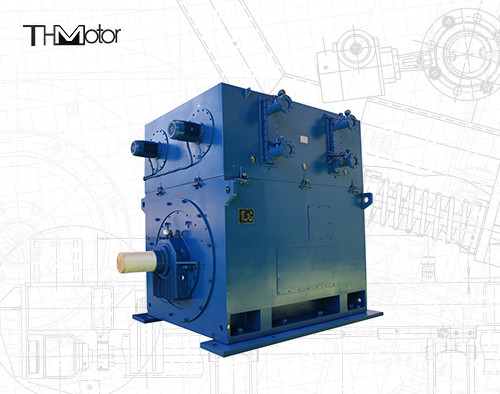

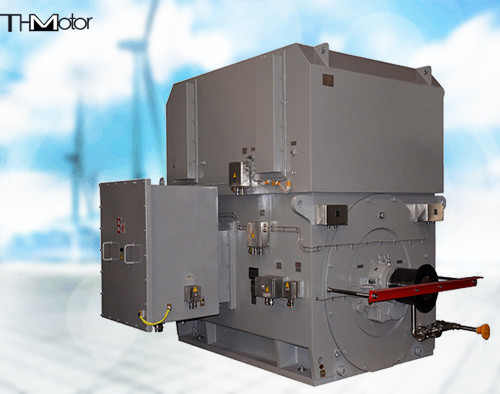

2200kw Wound Rotor Induction Motor High Torque Induction Motor
Product specifications
| Series | wound rotor | Voltages |
3 - 13,8 kV |
| Frame size | 355 - 800 | Frame construction | Fabricated steel |
| Power output | 200 - 9.000 kW | Degree of protection | IP55, IP65 |
| Mounting arrangments | B3, V1 | Temperature class | 155 (F) according to 130 (B) |
| Efficiency class | Cooling method | IC611 | |
| Number of poles | 2 - 10 | Certificates | CE |
Each series of motors
Our aftersales service
Product packaging
Certifications
