हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!
 |
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | YGP Asynchronous Motor With Variable Frequency Drive For ROLLER TABLE | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP55 |
| प्रमुखता देना: | YGP Asynchronous Motor,YGP variable frequency motor,Roller Table variable frequency motor |
||

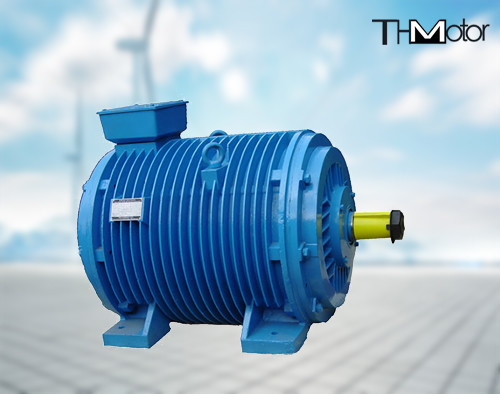

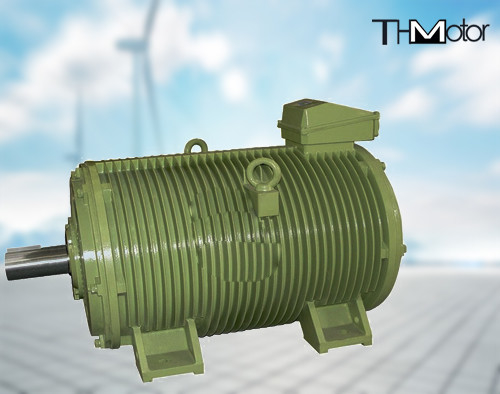

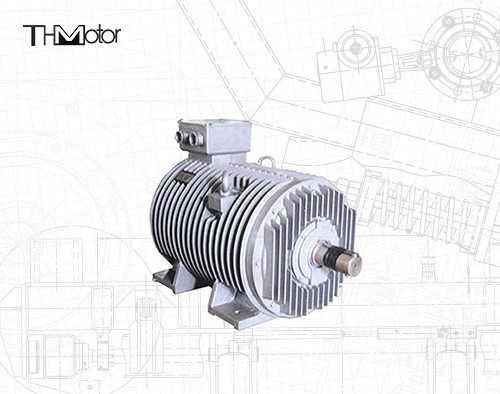

YGP Asynchronous Motor With Variable Frequency Drive For ROLLER TABLE
Product overview
YGP series three-phase asynchronous motor with variable frequency speed regulation for roller table (frame size 112-450)
Power range: 1.1kW-300kW
Rated voltage: 380V, 690V
Features: Class 155 or Class 180, IMB3 or IMB5, IC410, IP55 or IP56
Working system: S5-60% 300 times/hour
Technical features: The optimal value of rated frequency of YGP series motors can be determined according to the actual required speed range, with wide speed regulation range, small vibration and low noise. Suitable for V/F control and proper amount control.
Application field: It is suitable for continuous or intermittent work under severe conditions such as frequent starting, forward and reverse rotation, and reverse braking. It has a large speed regulation range, overload capacity and mechanical strength. It is a roller conveyor frequency conversion motor in the metallurgical industry. Can be used on other similar mechanical equipment.
Product specifications
| PRODUCT NAME: | YGP Asynchronous Motor With Variable Frequency Drive For ROLLER TABLE | POWER RANGE: | 1000-12000kw |
|---|---|---|---|
| VOLTAGE: | 3kv-11kv | SPEED RANGE: | 1000rpm-1500rpm |
| POLES: | 4,6 | FREQUENCY: | 50hz,60hz |
| COOLING METHOD: | IC37,IC81W | IP RATE: | IP44,IP54,IP55 |
Each series of motors
Our aftersales service
Product packaging
Certifications
व्यक्ति से संपर्क करें: Chongqing sales team
दूरभाष: +8613251285880
