हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!
 |
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | YKK-5000 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| product name: | YKK Series HV Squirrel Cage Motor | Power Range: | 600-1000kw |
|---|---|---|---|
| Voltage: | 3000v-10000v | Speed range: | 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM |
| Frequency: | 50hz,60hz | Cooling method: | IC611 |
| IP rate: | IP44/IP54 | Standard: | IEC,GB |
| Function: | blowers, compressors, pumps, crushing, grinding mill...... | ||
| प्रमुखता देना: | IP55 Synchronous compact marine generator,Fabricated steel Gas Turbine Generator,compact marine generator 155F |
||

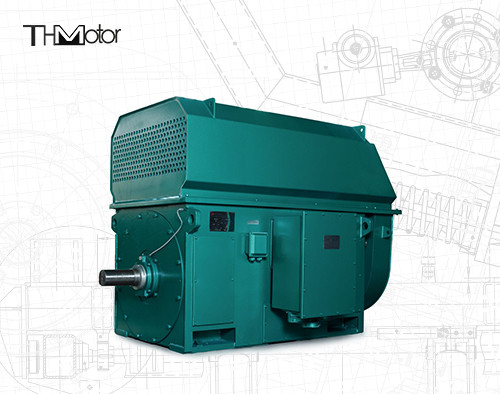

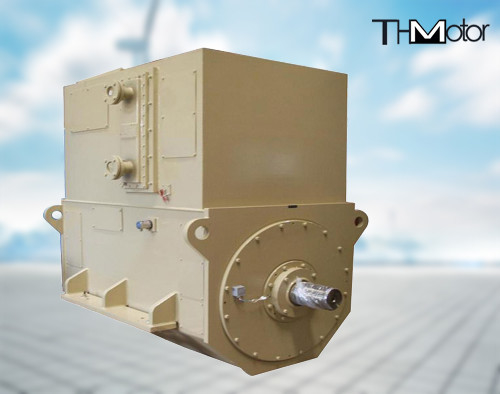

YKK Series HV Squirrel Cage Motor
Product overview
YKK-series (3kv, 6kv, 10kV) motor, is of closed squirrel-cage three phase asynchronous motor. The protection degree of the motor is of IP44/IP54 and the cooling method is of IC611. The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.
YKK series motor is design into box type construction. The frame is light in weight and good in rigid and it is made of steel plates by melding. Air-water cooler is fixed at the top of motor frame. It is convenient for replacement and maintenance. The stator of motor adopt for press construction. The winding of motor is for VPI impregnating, which ensure the reliable of the insulation, the mechanical stress and the capable of resistant humidity.
This motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushing, grinding mill, etc. It can be serve as the prime movers in coal mines, mechanical industry, power plants and various industrial enterprises.
Product specifications
| Frame size | 500 - 630 | Frame construction | Fabricated steel | |
| Number of poles | 4 - 6 | voltage | 3000v-10000v | |
| Power output | 220kw - 2500KW | Degree of protection | IP44 IP54 | |
| Frequency | 50hz,60hz | cooling method | IC611 | |
| Insulation Class | F | Synchronous Speed | 1500r/min | |
Each series of motors
Our aftersales service
Product packaging
Certifications
