| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | YXKS7101-4 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | YKK 630 Medium Size H355-630 High Voltage Electric Motors 3 Phase motor | Voltage: | 6000v-11000v |
|---|---|---|---|
| Power Range: | 400-6000kw | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz,60hz | Cooling method: | IC01、IC411、IC611 |
| Poles: | 2,4,6,8,12,16 | IP rate: | IP23, IP54,IP55 |
| Advantages: | High speed\ High performance | ||
| प्रमुखता देना: | IC611 High Voltage Electric Motor,High Voltage Electric Motor ODM,YKK 630 High Voltage Motor |
||

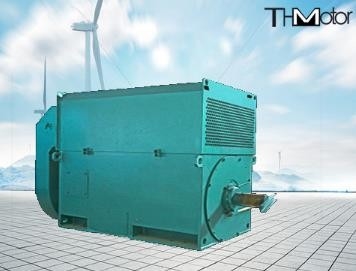

Medium Size YKK 630 High Voltage Electric Motors 3 Phase Motor H355-630
YKK series high-efficiency high-voltage three-phase asynchronous motors meet the market demand for motors with higher protection levels. Secondly, the product has strong versatility and has become a mainstream product, which can be used to replace the original old-fashioned JK series motors. The motor is welded by all steel plates, with reasonable structure, and the top has an air-to-air cooler with good heat dissipation performance. At the same time, VPI vacuum pressure impregnating paint is used, which has excellent insulation performance and long service life. The motor can be made into a high-efficiency motor, which is the leading product promoted by the country. The market is extremely broad, with significant economic and social benefits.
【Product applicable standards】
JB/T10315.2-2013(6KV), Q/WN.206-2014(10KV)
Ideal for driving all kinds of general machinery, such as water pump, fan, compressor, crusher and etc.
Product specifications
| Frame Size | 355 | 400 | 450 | 500 | 560 | 630 | 710 | 800 | 900 | 1000 |
| Power range kW | 185~315 | 185~500 | 185~800 | 220~1250 | 355~1800 | 560~2500 | 500~3550 | 800~5000 | 1250~7100 | 1800~8000 |
| Poles | 2.4 | 2.4.6.8 |
2.4.6. 8.10.12 |
2.4.6. 8.10.12 |
2.4.6.8 10.12 |
2.4.6.8 10.12 |
4.6.8. 10.12.16 |
4.6.8. 10.12.16 |
4.6.8. 10.12.16 |
6.8.10 .12.16 |
