हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!

|
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | YKK-500/1250KW |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Y Series High Voltage Electric Motor High Voltage AC Motor | Power Range: | 400-6000kw |
|---|---|---|---|
| Voltage: | 6000v-11000v | Speed range: | 100rpm-3600rpm |
| Frequency: | 50hz, 60hz | Cooling method: | IC01、IC411、IC611 |
| IP rate: | IP23, IP54,IP55 | Poles: | 2,4,6,8,12,16 |
| प्रमुखता देना: | 6000kw 3ph squirrel cage induction motor,10KV High Voltage AC Motor,400kw 3 phase ac induction motor |
||

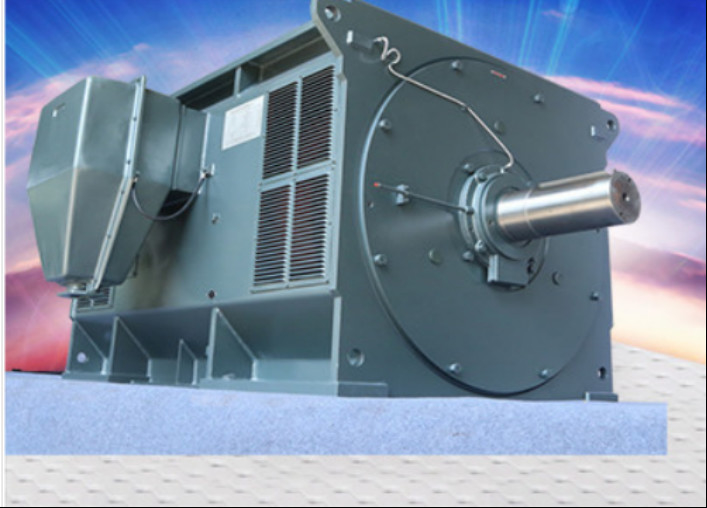

Y Series High Voltage Electric Motor High Voltage AC Motor
Product overview
High-voltage motor (Y series) adopts box structure, and the frame is welded with steel plate, which is light in weight and good in rigidity. The Y series high-voltage motor is naturally ventilated and cooled. A protective cover is installed on the upper part of the base, which is convenient for disassembly and maintenance of the motor.
The stator winding is made of F class heat-resistant insulation material, with reliable top bonding. Y series high-voltage motor has good insulation performance and mechanical strength through vacuum pressure impregnation.
The rotor of Y series high-voltage motor adopts squirrel cage structure and has reliable cast aluminum or copper conductor. There are two types of bearings: rolling bearings and sliding bearings, which depend on the speed and power of the motor.
Product overview
| Motor frame | 500/630/710/800 | IP Rate | IP54/IP44/IP55 |
| Power range | 220kw - 2500KW,3500KW | IC(cooling) | IC611 |
| Voltage | 3KV, 6KV, 10KV | Poles | 2,4,6,8,10,12 |
| Frequency | 50HZ/60HZ | Insulation | F |
| Speed | 500/590/740/990/1500/3000RPM | Efficiency | 84-94.5% |
| Power Factor | 0.84-0.85 | AT(Ambient Temp) | -15-40℃ |
Each series of motors
Our aftersales service
Product packaging
Certifications
