हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!
 |
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Product name: | Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry | Power Range: | 1000-12000kw |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP55 |
| प्रमुखता देना: | Taw 8000kw AC Synchronous Motor,Explosion Proof Motor 18 poles,Taw 8000kw Explosion Proof Motor |
||

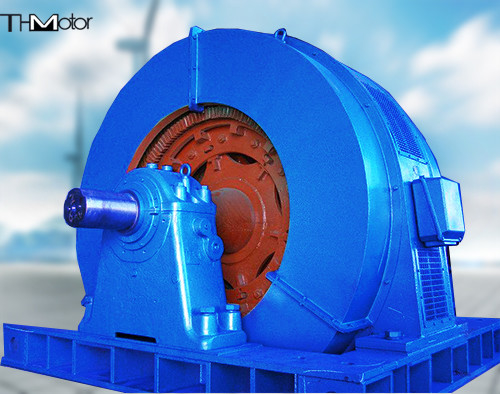

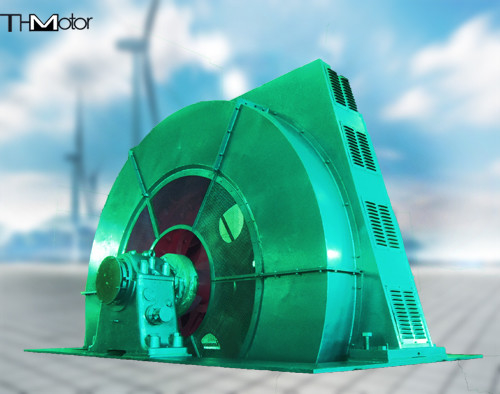

Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry
TAW series increased safety type brushless excitation synchronous motor
Power range: 250kW～10000kW
Number of poles: 12 to 30. If there are special needs, it can be implemented according to the design.
Explosion-proof mark: ExeIICT3 Gc
Rated voltage: 6000V, 10000V, etc.
Technical features: high efficiency and energy saving, beautiful appearance, low vibration, low noise, high protection level, high safety, convenient use and maintenance.
Application fields: drive large-scale mechanical equipment such as reciprocating compressors, widely used in petroleum, petrochemical, chemical, fertilizer, coal, natural gas and other industries, working in the explosive gas environment of "2" zone.
Technical Data(6kv)
| Power | 1800-12000kw | IP | IP44 |
| Ist | 4.55-6.05 | Cooling Method | IC91W |
| Voltage | 380-11000v | Poles | 10,12,16,32 |
| Frequency | 50HZ/60HZ | Insulation class | F;H |
| Speed | 150/500RPM | Efficiency | 96.4-97.7% |
| P.F. | 0.84-0.85 | AT | -15-40℃ |
Technical Data(10kv)
| Power | 2000-36000kw | IP | IP44 |
| Ist | 4.69-6.65 | Cooling Method | IC91W |
| Voltage | 380-11000v | Poles | 10,12,16,32 |
| Frequency | 50HZ/60HZ | Insulation class | F;H |
| Speed | 150/500RPM | Efficiency | 96.4-97.7% |
| P.F. | 0.84-0.85 | AT | -15-40℃ |
