| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | T 7000 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Power Range: | 1000-12000kw | IP rate: | IP44,IP54,IP55 |
|---|---|---|---|
| Voltage: | 3kv-11kv | Speed range: | 1000rpm-1500rpm |
| Poles: | 4,6 | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | ||
| प्रमुखता देना: | Driving Compressors AC Synchronous Motor Electric,Flame Proof AC Synchronous Motor 10KV,12000kw AC Synchronous Motor |
||

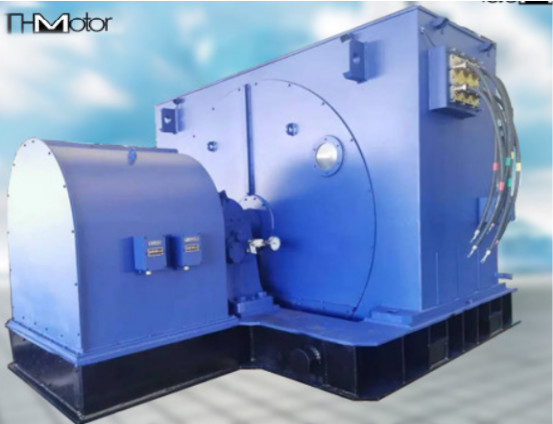

TK4000KW AC Synchronous Motor For Driving Compressors
Product overview
Synchronous motor series (JB/DQ3449)
TK series synchronous motors are suitable for driving reciprocating compressors.
both With shaft and seat bearing (IM7300) and without shaft and seat bearing(IM5710) two structures. The cooling method is generally open type (IC01) and other types:
Such as with air-water cooler, or duct ventilation. The enclosure protection grade is generally IP00.
It can also be made into other grades such as IP23, and the insulation grade is B or F.
Excitation mode is static thyristor excitation
Product specifications
| Power range | 250-10000kW |
| Voltage | 380V, 3000V, 6000V, 10000V |
| Speed | 150-1000r/min |
| Quality/safety certification | ISO9001/CE |
| frame(center high) | 630~750mm |
| power | 0.45MW~50MW |
| voltage | 3KV~15KV |
| frequency | 50,60HZ |
| poles | 2~40P |
| cooling method | IC01,IC611,IC81W,IEC,GB |
| explosive-proof | flame proof |
Each series of motors
Our aftersales service
Product packaging
Certifications
