हमारी मोटर, अपनी ऊर्जा बचाओ, अपनी सफलता ड्राइव!
 |
| Place of Origin: | China |
| ब्रांड नाम: | THMotor |
| प्रमाणन: | CE |
| Model Number: | TL1600 |
| Minimum Order Quantity: | 1set |
|---|---|
| मूल्य: | USD 20000-100000 |
| Packaging Details: | Seaworthy packing |
| Delivery Time: | 70DAYS |
| Supply Ability: | 100SET/YEAR |
| Power Range: | 500-15000kw | Voltage: | 6kv-10kv |
|---|---|---|---|
| Speed range: | 375,333,300, 250, 214, 188, 167, 150, 136, 125r/min | Frequency: | 50hz,60hz |
| Cooling method: | IC37,IC81W | IP rate: | IP44,IP54,IP23 |
| Standard: | ICE,GB | ||
| प्रमुखता देना: | TL Vertical Large Synchronous Motor,TL Vertical Water Conservancy Motor,Water Conservancy Motor 10kv |
||

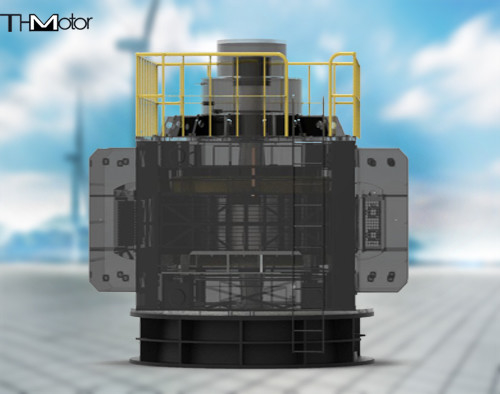

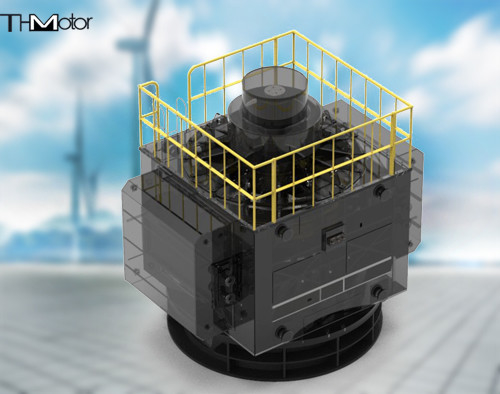

TL Vertical Large Synchronous Motor For Water Conservancy Motor For Water Pump
| POWER RANGE: | 500-15000kw | VOLTAGE: | 6kv-10kv |
|---|---|---|---|
| SPEED RANGE: | 375,333,300, 250, 214, 188, 167, 150, 136, 125r/min | FREQUENCY: | 50hz,60hz |
| COOLING METHOD: | IC37,IC81W | IP RATE: | IP44,IP54,IP23 |
| STANDARD: | ICE,GB |
TL series synchronous motors are generally of a vertical suspension structure. The stator core is laminated with low-loss cold-rolled silicon steel plates. The stator windings are impregnated with F-class VPI solvent-free paint under vacuum pressure, so that the stator has good insulation performance and reliable performance. Mechanical strength, can withstand the impact of electromagnetic force when starting. The rotor is a salient pole structure, the magnetic pole iron core is made of high-quality cold-rolled steel plates, and the full damping structure is adopted, so that the motor has good starting performance and damping ability.
